Description

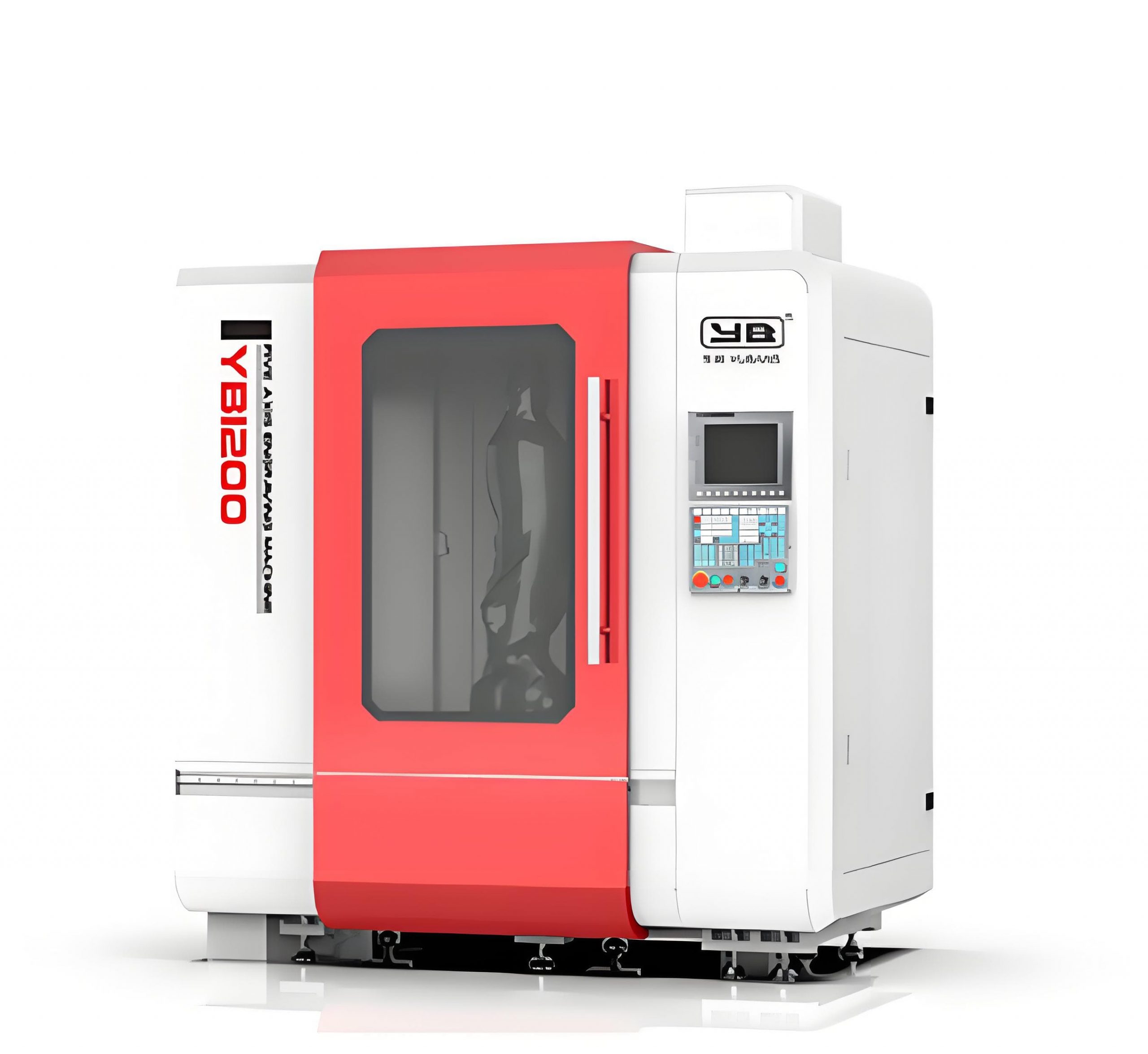

| Product Name | High Precision Tech Gemstone Engraving Machine |

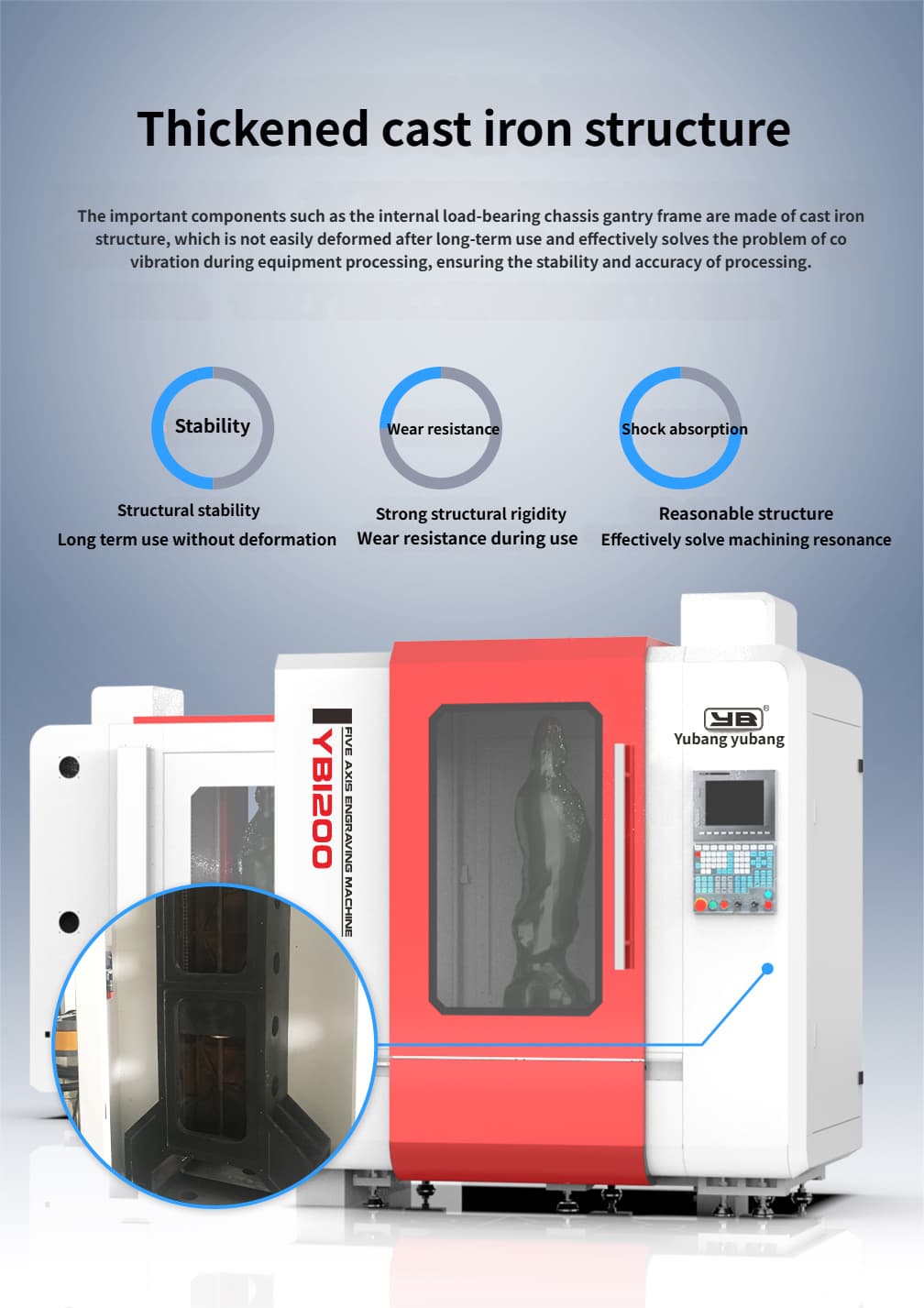

| Material | Cast iron |
| Weight | 2000kg |

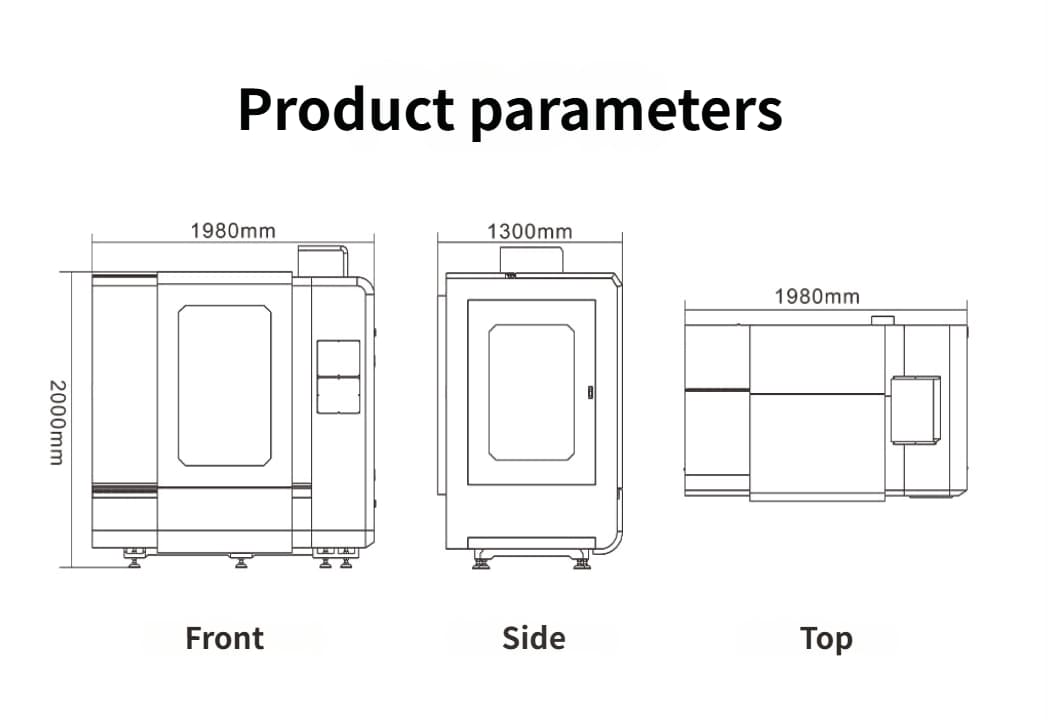

| Size | 1980*1300*2350mm |
| X/Y/Z axis motion accuracy | 0.05/0.05/0.05mm |
| A/B-axis motion accuracy | 0.05° |
| X/Y/Z axis repeatability accuracy |
0.02/0.02/0.02mm
|
| A/B-axis repeatability accuracy | 0.03° |
| Travel（X*Y*Z） | 500*1000*450mm |

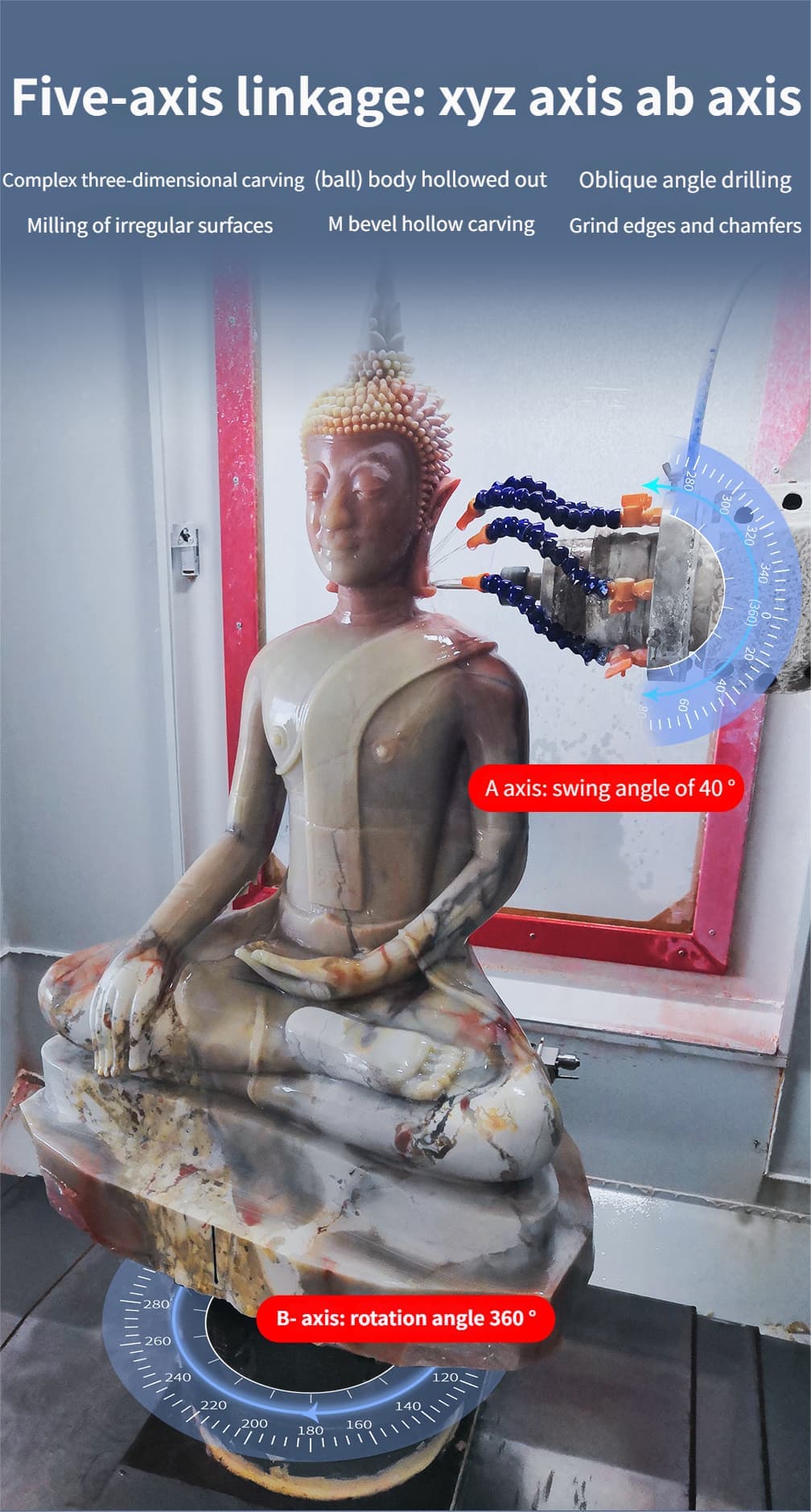

| A/B axis rotation angle | ±40°/360° |

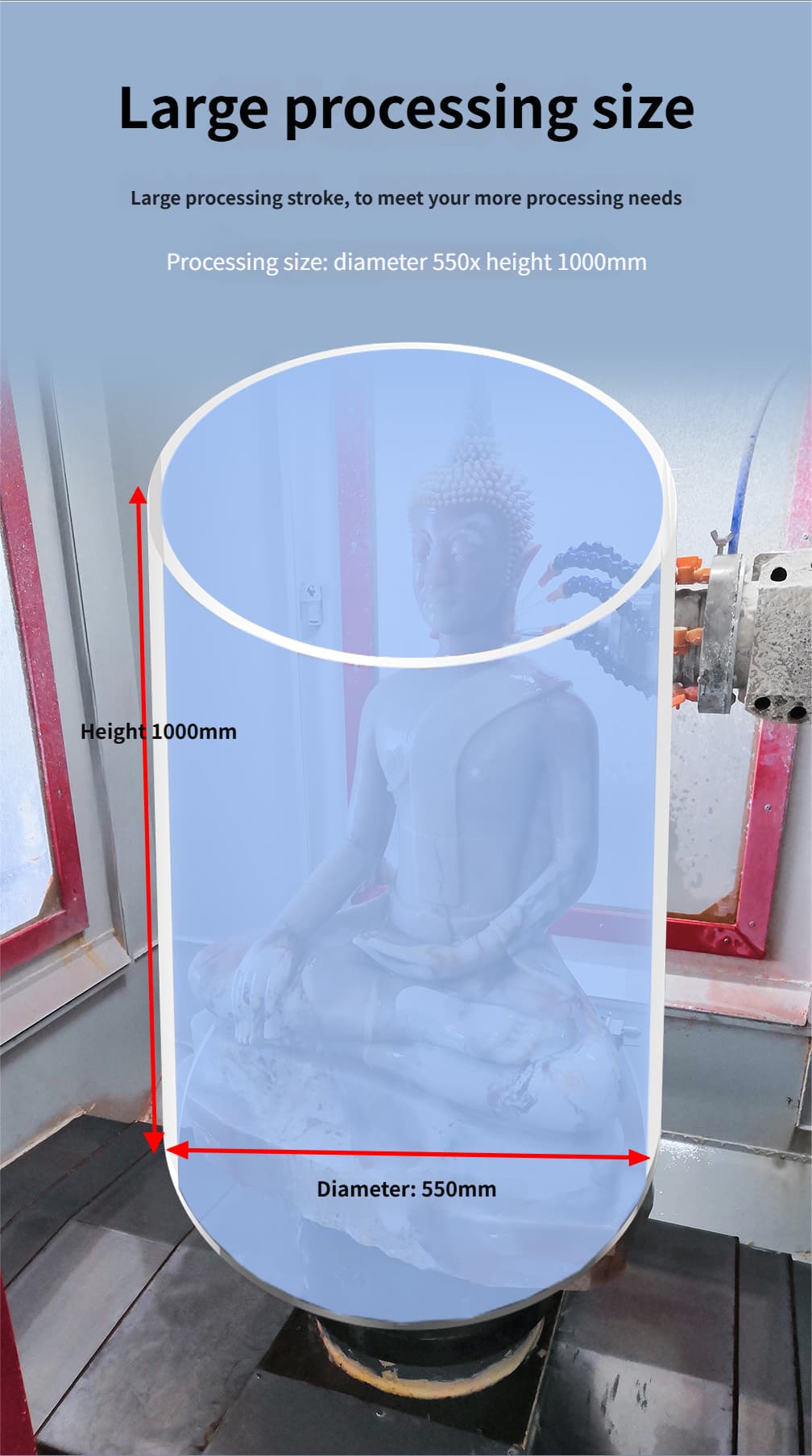

| Processing Size | Ø550*L1000mm |

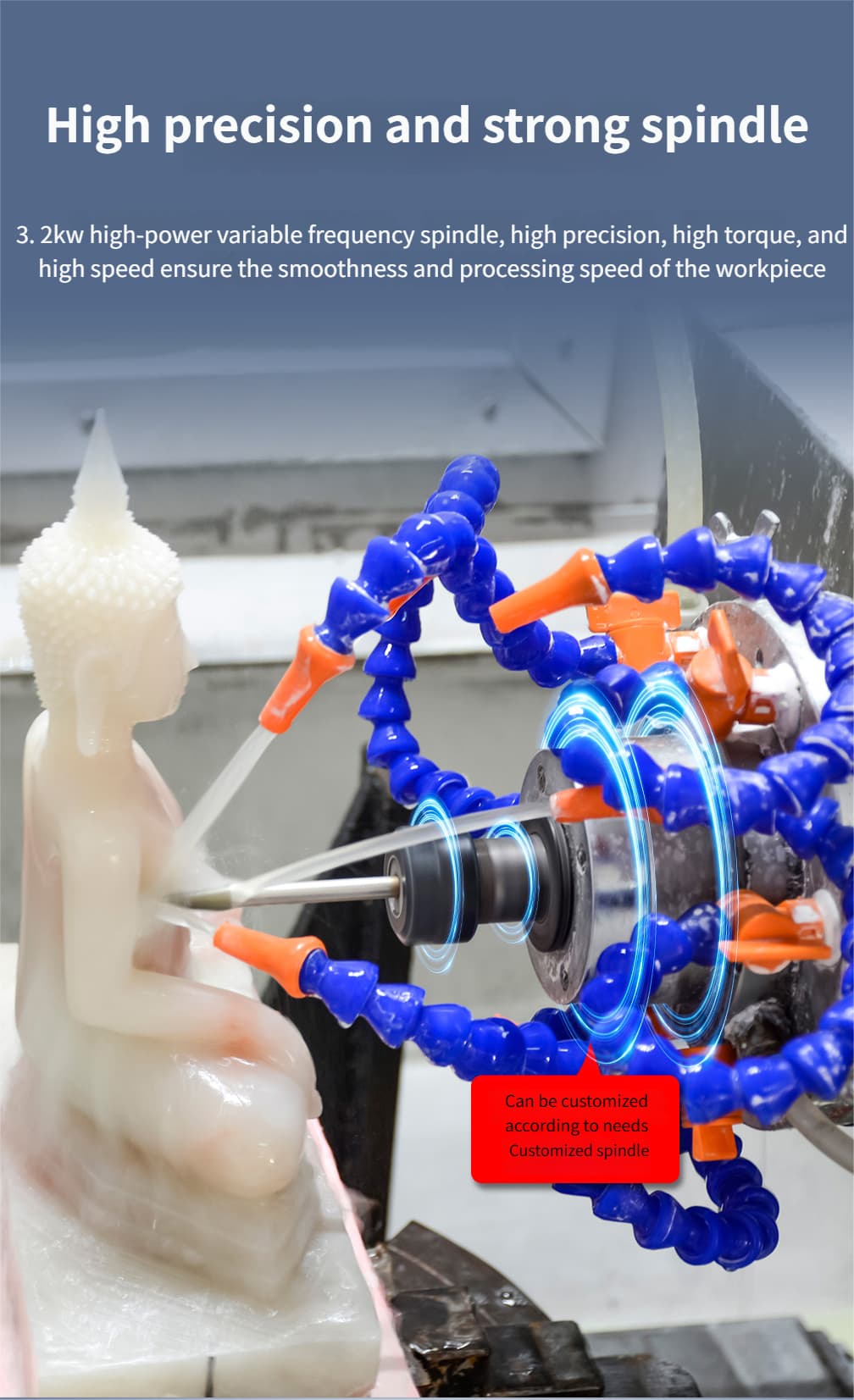

| Spindle Power | 3.2KW |
| Spindle Speed | 0-24000rpm |
| X/Y/Z Maximum feed rate | 5m/min |
| A/B Maximum feed rate | 15/20rpm |
| Drive Method | AC servo |
| Rated Voltage | Three-phase 380/50hz |
| Total Power | 3.2KW |
| MOQ | 1set |
| Delivery Time | Small order : deliver within 7 days after receiving payment
Bulk order : negotiable available
|
| Production Cycle | 1. For stock order, we ship within 3 work days when we get your payment.
2. For OEM/ODM order, lead time is 5-20 work days according to the quantity.
|
| Payment | L/C;T/T; PayPal ; West Union etc |
| Shipping Way | 1. By Express: EMS/DHL/TNT/FEDEX/UPS
2. By Sea
|
| Packing & Shipping | 1. Each item is wrapped with oppbag and protective air bubble
2. Then put into the box/Pack with strong Cartons for shipping
|
| Note | If you want to see more kinds of jewelry and hd pictures, please contact our customer service. |
